Type of Testing & Measurments



MU-G20 Test Setup

MU-G20 Test Setup

TES MU-G20 test setup

Specifications

  • Manufacture for Schneider Electric India Ahmednagar
  • Test product MU-G20 /MU-G30/MU G6//MU G6-Auto
  • Test conducted
  • Flashing-on off
  • Phase Reversal
  • Single Phase
  • Phase Failure
  • HV (Isolation test)
  • PLC PC based Software with Labview Front end

ATSE Test Setup

ATSE Test Setup

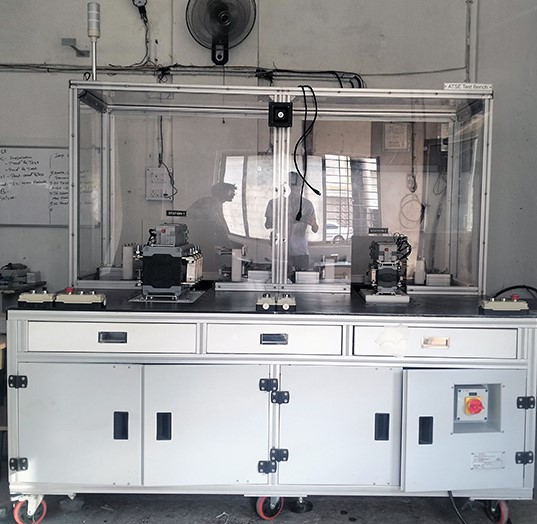

ATSE Test Setup

Specifications

  • Manufacture for Schneider Electric India Ahmednagar
  • Test product ATSE of COX-2, COX-3, COX-4 and COX-5
  • Test conducted
  • 2 stations working simultaneously
  • PLC and PC software-based system with Labview front end
  • Functional testing of product
  • fixtures with Pnumatic operation

MCB Tharmal Test Bench

MCB Tharmal Test Bench

TES MCB Tharmal test Bench

Specifications

  • Manufacture for Schneider Electric India Ahmednagar
  • Test product L&T MCB
  • Test conducted
  • MCB thermal test conducted 5 stations testing at one time
  • High current Testing
  • PLC and PC software-based system with Labview front end
  • Pneumatic fixtures use for fixture operation

MO DC Test Bench

MO DC Test Bench

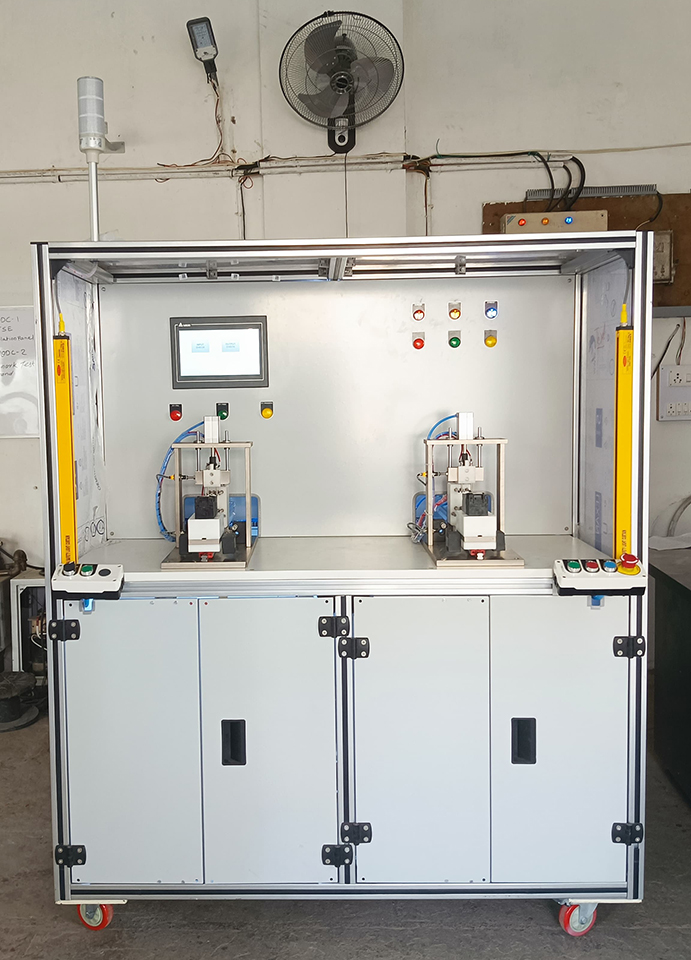

MO DC Test Bench

Specifications

  • Manufacture for Schneider Electric India Ahmednagar
  • Test product L&T MO DC Contactor
  • Test conducted
  • Continuity testing across the poles
  • PLC and PC software-based system with Labview front end.
  • Pneumatic fixtures use for fixture operation.

Relay /Contactor Endurance Test System

Relay /Contactor Endurance Test System

TES Relay-Contactor-Endurance-Test-System

Specifications

  • PLC HMI Based System, Provision for PC software Labview and others
  • On Off cycle programmable
  • Failure Criteria –Contact sensing/Current/mV Across contact
  • Failure Report Stored in HMI
  • Current Rating for contact 1 to 100A @230V with PF 0.4 ,0.6,0,8 & 1

Multipoint Contact Resistance Meter

Multipoint Contact Resistance Meter

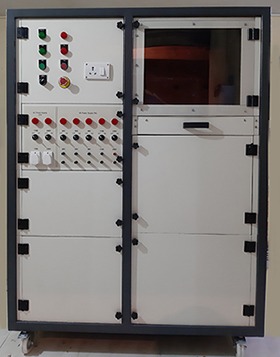

Multipoint Contact Resistance Meter

Specifications

  • PLC and PC software Labview based system
  • Measures 36 point Contact Resistance
  • 100A inbuilt current source
  • Used to measure Contact resistance for VCB (Vaccum circuit Breaker ) and RMU

Shunt Calibrator

Shunt Calibrator

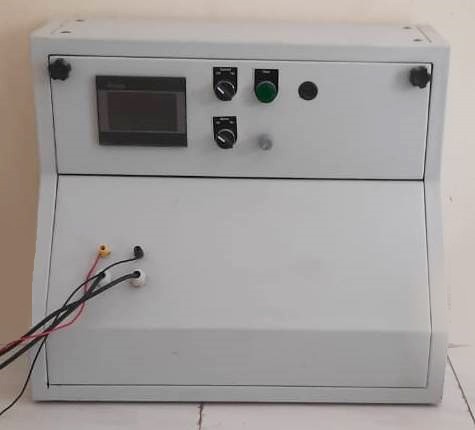

TES Shunt Calibrator

Specifications

  • PLC HMI Based
  • Variable current range up to 1000A
  • Res. Range -0.1 milli ohm to 100 mOhm
  • Software Calibration
  • Test Report printing as per Shunt No.
