Type of Test Facilty Stand

Mechanical Endurance

Mechanical Endurance

TES Mechanical-Endurance

Specifications

  • Manufacture for Eaton India Innovation Centre
  • Eaton’s MCB connection plates Endurance Test Bench.
  • Provided Special type of fixture to hold product for Endurance test.
  • Test conducted
  • Endurance test of Eaton’s MCB connection plates.
  • PLC and HMI software-based system.
  • Pilz Safety rated system

HV Coolant

HV Coolant

TES HV-Coolant

Specifications

  • Manufacture for Eaton India Innovation Centre
  • Eaton’s Konark DUT testing
  • Provided HV & High current testing area & busbar connections.
  • Test conducted
  • Eaton’s Konark DUT testing for HV & High current with water coolant provision inside system test area.
  • PLC and HMI software-based system.
  • Pilz Safety rated system.

Connector Test Stand

Connector Test Stand

TES Connector Test Stand

Specifications

  • Manufacture for Eaton India Innovation Centre
  • Eaton’s Connector Pins, Various types of connectors.
  • Provision for 1000A Current capacity connections inside
  • Test conducted
  • mV & Temperature of connector points for 10 points.
  • DAC and PC software-based system.
  • Pilz Machine Safety rated system.

Pressure & Vacuum Test Stand

Pressure & Vacuum Test Stand

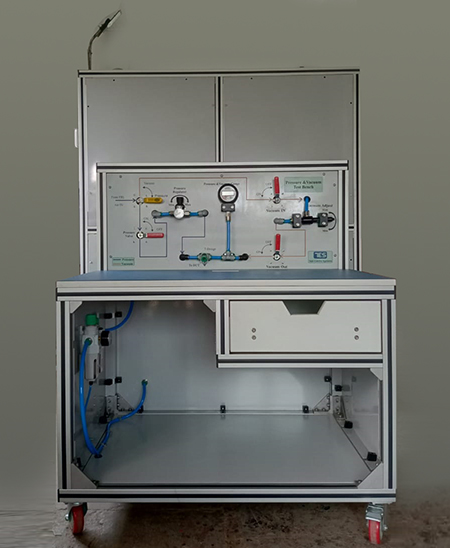

TES Pressure-Vaccum

Specifications

  • Manufacture for Eaton India Innovation Centre
  • Eaton’s wires pressure & vacuum testing up to 10 Bar.
  • Provided Pressure regulator & vacuum pump to perform test.
  • Test conducted
  • Eaton’s wires pressure & vacuum testing up to 10 Bar.

High Voltage Test Stand

High Voltage Test Stand

TES HV Test Stand

Specifications

  • Manufacture for Eaton India Innovation Centre
  • Eaton’s various type DUT’s.
  • Provision for HV & high Current capacity connections inside for AC & DC also.
  • Test conducted
  • System Input & output to Power source.
  • Pilz Safety rated system.
